Descripción del fabricante

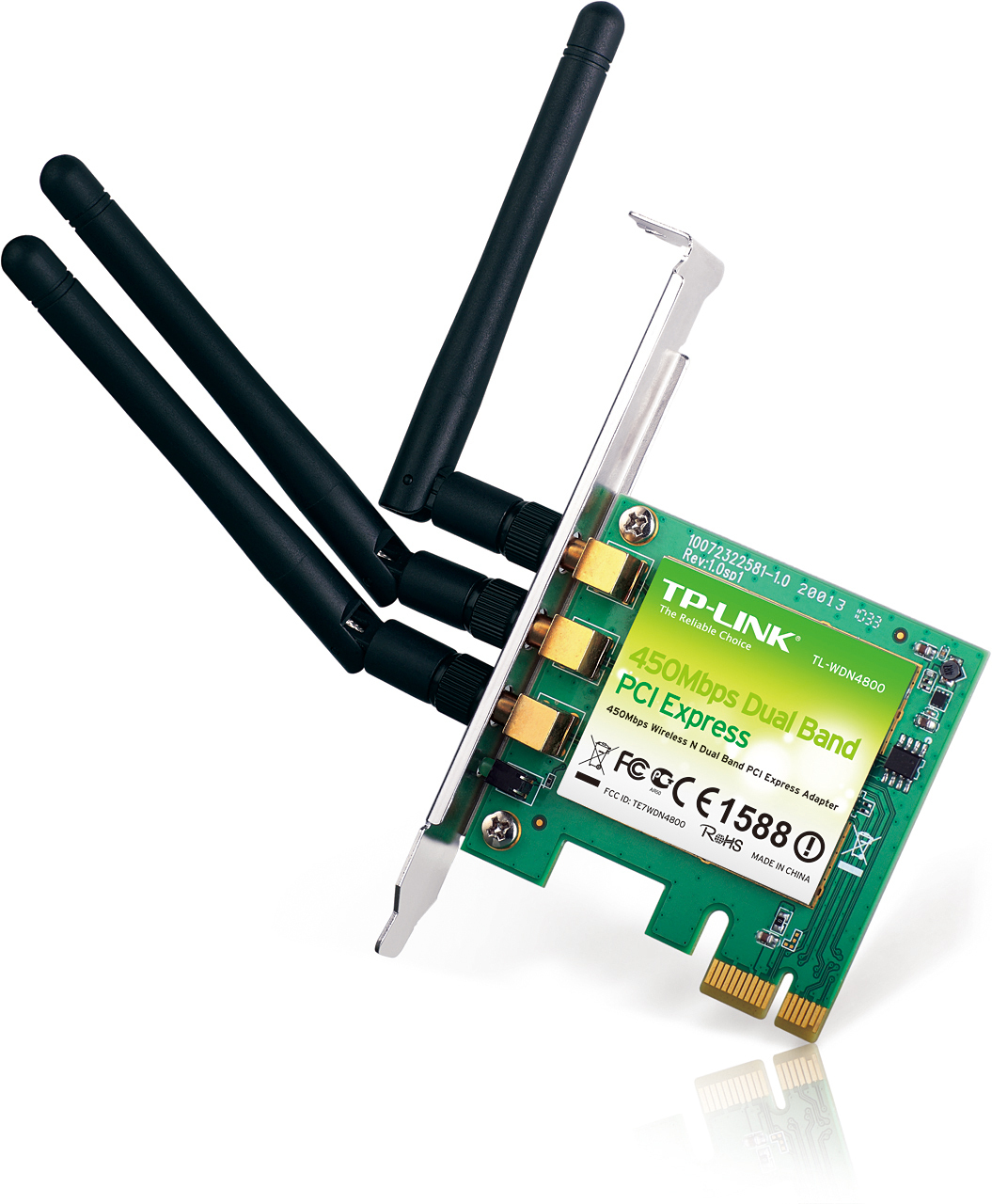

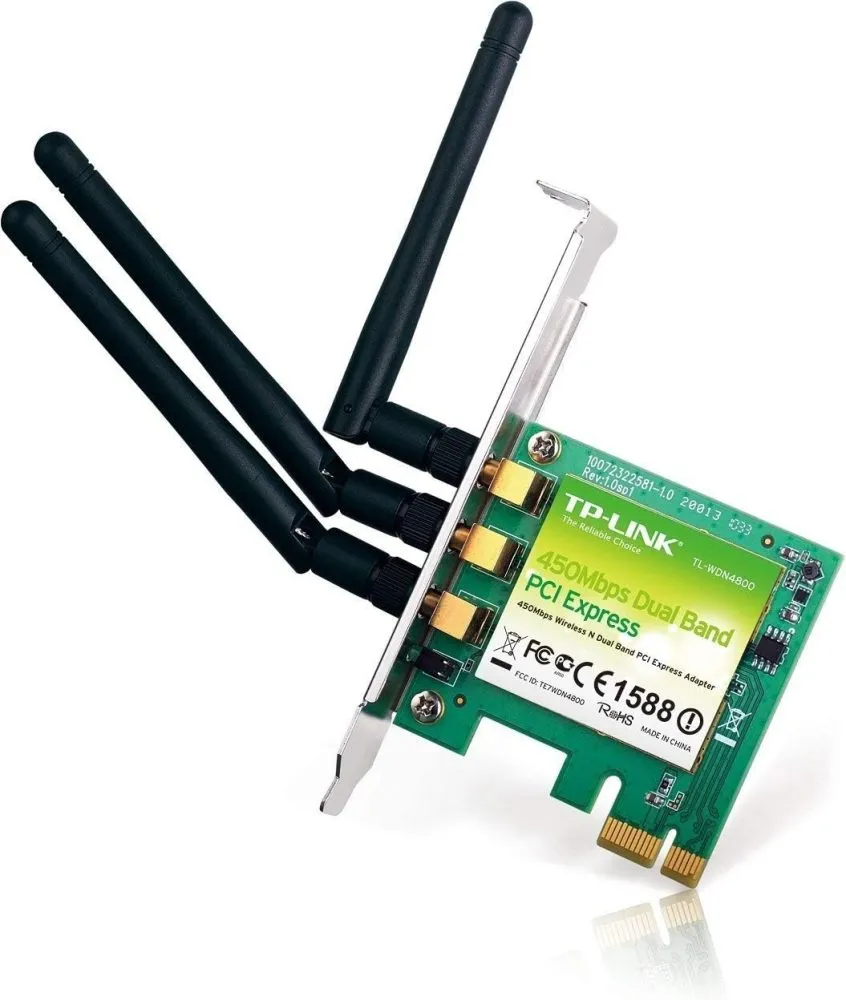

TP-Link TL-WDN4800. Internal. Connectivity technology: Wireless, Host interface: PCI Express, Interface: WLAN. Maximum data transfer rate: 450 Mbit/s, Top Wi-Fi standard: Wi-Fi 4 (802.11n), Wi-Fi band: Single-band (2.4 GHz). Antenna type: Omni Directional, Product colour: Black, Silver
Manuales y documentos
| Internal |
Yes |
| Product colour |
Black, Silver |
| Antenna type |
Omni Directional |
| Antenna connector type |
RP-SMA |
| Plug and Play |
Yes |
| Certification |
CE, FCC, Wi-Fi |
| Maximum data transfer rate |
450 Mbit/s |
| Networking standards |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x |
| Ethernet LAN |
No |
| Wi-Fi |
Yes |
| Wi-Fi band |
Single-band (2.4 GHz) |
| Frequency range |
2.4 - 2.4835 GHz |
| Top Wi-Fi standard |
Wi-Fi 4 (802.11n) |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g |
| WLAN data transfer rates supported |
1,2,6,9,11,12,18,24,36,48,54,450 Mbit/s |
| Modulation |
16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK |
| Security algorithms |
128-bit WEP, 64-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Gain |
2 dBi |
| Quick start guide |
Yes |
| Supported data transfer rates |
11, 54, 450Mbit/s |
| Ports quantity |
3 |
| Connector(s) |
3x RP-SMA |
| Wireless connection |
Yes |
| Connectivity technology |
Wireless |
| Host interface |
PCI Express |
| Interface |
WLAN |
| Ethernet LAN (RJ-45) ports |
0 |
| Parallel ports quantity |
0 |
| Compatible memory cards |
Not supported |
| Internet connection required |
Yes |
| Optical drive required |
Yes |
| Windows operating systems supported |
Windows 7 Home Premium, Windows 7 Home Premium x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows XP Home, Windows XP Home x64 |
| Compliance certificates |
RoHS |
