| Categoría |
Switches en Redes
|
| Clave |
845973099909 |
| Marca |
TP-Link |
| Modelo |
TL-SF1009P |
| UPC |
845973099909 |
Descripción del fabricante

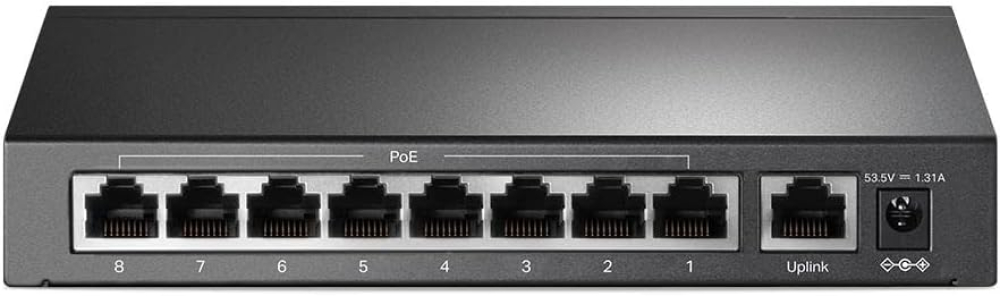

TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 9. Full duplex. MAC address table: 2000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable
Manuales y documentos
| Compliance certificates |
Federal Communications Commission (FCC), CE, RoHS |
| Certification |
FCC, CE, RoHS |
| MAC address table |
2000 entries |
| Switching capacity |
1.6 Gbit/s |
| Forwarding rate |
1.3392 Mpps |
| Store-and-forward |
Yes |
| Rack mounting |
No |
| Stackable |
No |
| Product colour |
Black |
| Housing material |
Metal |
| LED indicators |
Activity, Link, PoE, Power |
| Wall mountable |
Yes |
| Harmonized System (HS) code |
85176990 |
| Networking standards |
IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support |
No |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX |
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e |
| Full duplex |
Yes |
| Half duplex |
Yes |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| MAC address auto-learning supported |
Yes |
| MAC address auto-aging supported |
Yes |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
262.84 BTU/h |
| AC adapter included |
Yes |
| Package type |
Box |
| Package width |
223 mm |
| Package depth |
280 mm |
| Package height |
68 mm |
| Package weight |
980 g |
| Basic switching RJ-45 Ethernet ports quantity |
9 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Fast Ethernet (copper) ports quantity |
9 |
| Power connector |
DC-in jack |
| Power source |
DC/PoE |
| Power supply included |
No |
| AC input voltage |
220 V |
| AC input frequency |
50 Hz |
| DC input voltage |
53.5 V |
| Input current |
1.31 A |
| Power consumption (max) |
77.08 W |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Power over Ethernet (PoE) power per port |
30 W |
| Total Power over Ethernet (PoE) budget |
65 W |
| Sustainability compliance |
Yes |
| Width |
171 mm |
| Depth |
98 mm |
| Height |
27 mm |
