Descripción del fabricante

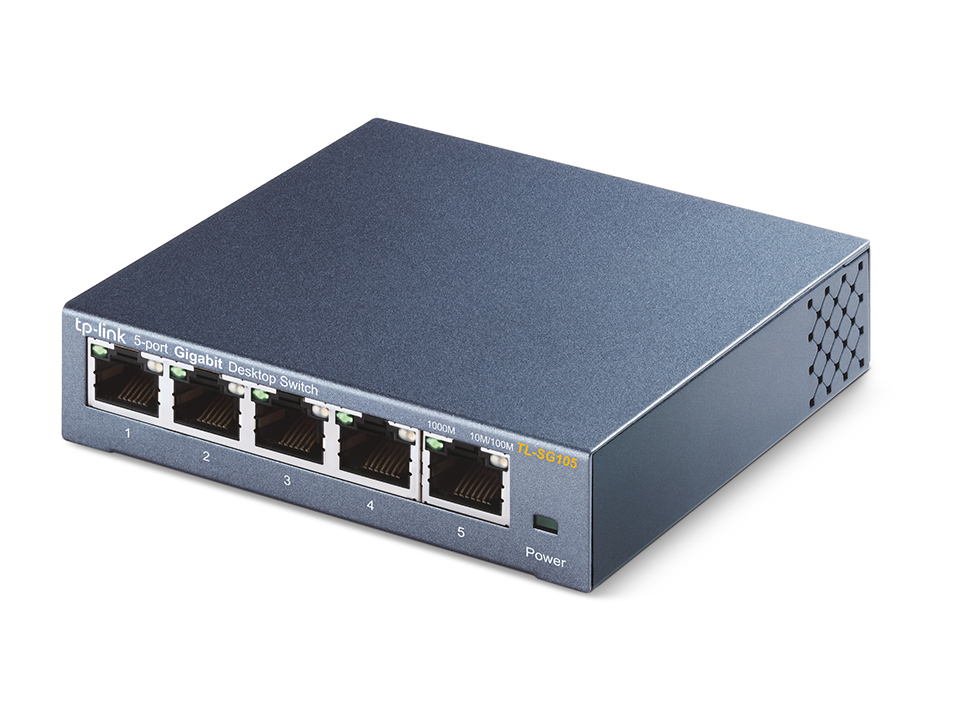

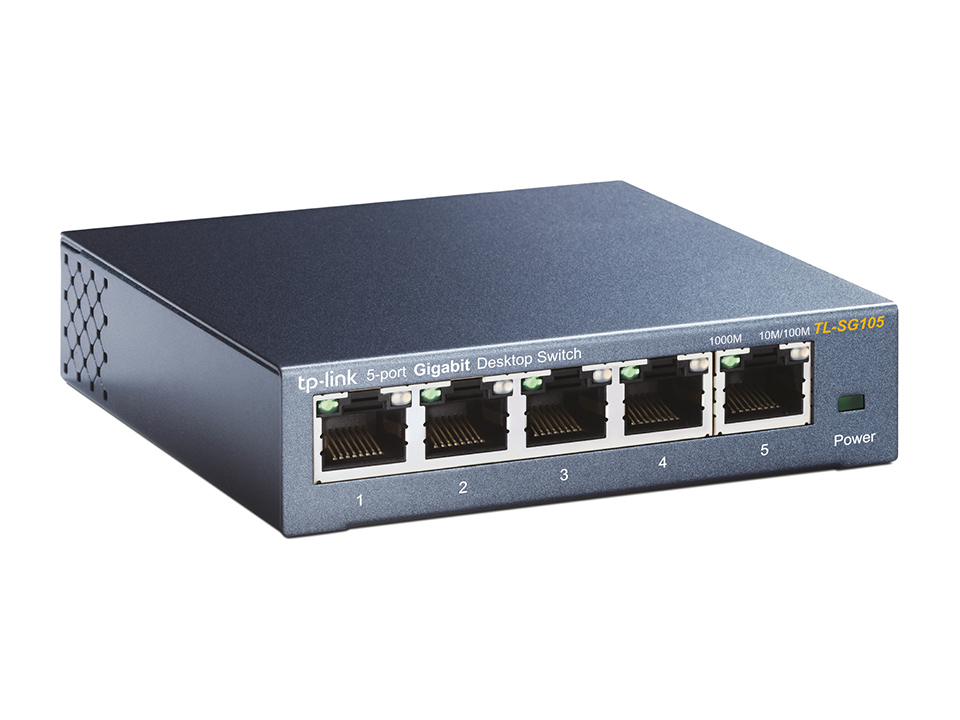

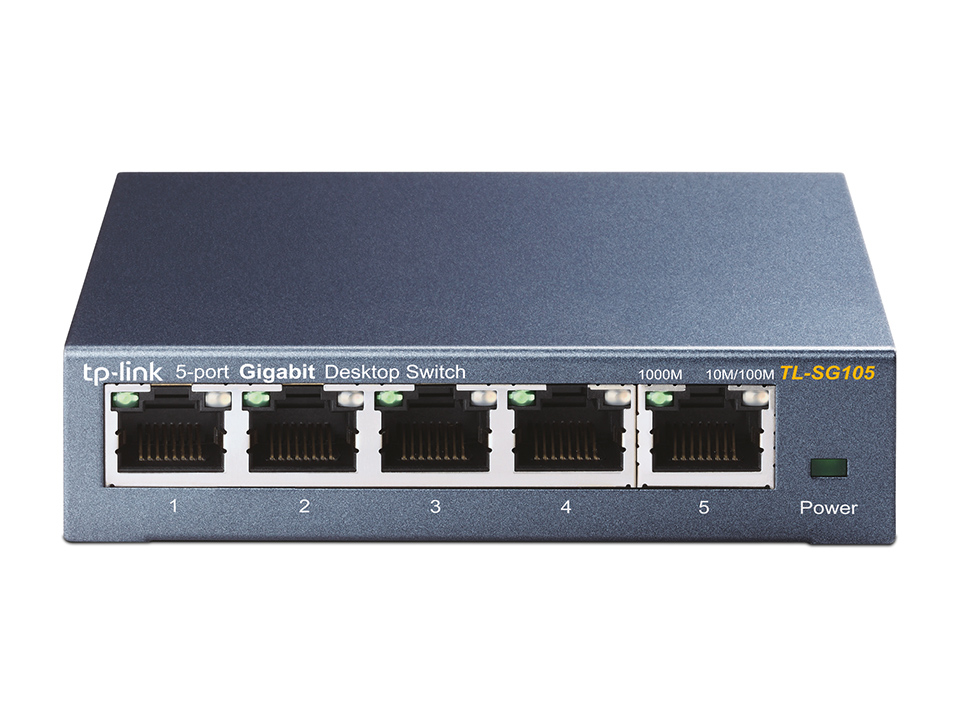

TP-Link 5-Port 10/100/1000Mbps Desktop Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack
Manuales y documentos
| Certification |
CE, FCC, RoHS |
| MAC address table |
2000 entries |
| Switching capacity |
10 Gbit/s |
| Supported data transfer rates |
10/100/1000Mbps |
| Forwarding rate |
7.4 Mpps |
| Store-and-forward |
Yes |
| Maximum data transfer rate |
2 Gbit/s |
| Jumbo frames support |
Yes |
| Jumbo frames |
16000 |
| Packet buffer memory |
1 MB |
| Product colour |
Black |
| LED indicators |
Yes |
| Switch type |
Unmanaged |
| Quality of Service (QoS) support |
Yes |
| Networking standards |
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support |
No |
| Full duplex |
Yes |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Auto-negotiation |
Yes |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
7.83 BTU/h |
| Connectivity technology |
Wired |
| Wi-Fi |
No |
| Power LED |
Yes |
| Ethernet LAN |
Yes |
| User guide |
Yes |
| Rack mount kit |
Yes |
| Package type |
Box |
| Package width |
125 mm |
| Package depth |
128 mm |
| Package height |
92 mm |
| Package weight |
370 g |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Gigabit Ethernet (copper) ports quantity |
5 |
| Power connector |
DC-in jack |
| Power source |
DC |
| Power supply included |
Yes |
| Input current |
0.6 A |
| Input voltage |
9 V |
| Power consumption (max) |
2.3 W |
| Power over Ethernet (PoE) |
No |
| Switching protocols |
CSMA/CD |
| Width |
100 mm |
| Depth |
98 mm |
| Height |
25 mm |
