OK DOCK
MSI

Clave: 824142319239

  • PSU MSI MAG A750GL PCIE5 750W
  • PSU MSI MAG A750GL PCIE5 750W - imagen 1
  • PSU MSI MAG A750GL PCIE5 750W - imagen 2
  • PSU MSI MAG A750GL PCIE5 750W - imagen 3
  • PSU MSI MAG A750GL PCIE5 750W - imagen 4
  • PSU MSI MAG A750GL PCIE5 750W - imagen 5
MSI

PSU MSI MAG A750GL PCIE5 750W

$1,799.00

Agotado, por favor envía un mensaje para conocer disponibilidad
Guardar en favoritos
Métodos de pago
MSI MAG A750GL PCIE5, 750 W, 100 - 240 V, 47 - 63 Hz, 8 A, 4 A, Active

Puntos destacados

  • 750 W 100 - 240 V 47 - 63 Hz
  • Motherboard power connector: 20+4 pin ATX
  • PC ATX 80 PLUS Gold
  • Active 12 cm
  • Black
Categoría Fuentes de poder y adaptadores en Componentes de ensamble
Clave 824142319239
Marca MSI
Modelo MAG A750GL PCIE5
UPC 824142319239

Descripción del fabricante

MSI MAG A750GL PCIE5. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 45 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm

Manuales y documentos

Design

Product colour Black
Cooling type Active
Fan diameter 12 cm
Number of fans 1 fan(s)
Illumination No
On/off switch Yes

Logistics data

Harmonized System (HS) code 84733020

Packaging data

Package type Box

Performance

Purpose PC
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Gold
ATX version 3.1

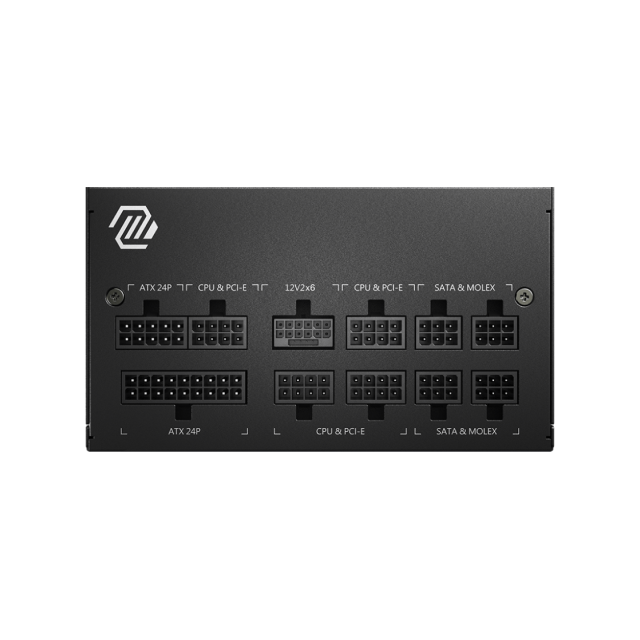

Ports & interfaces

Motherboard power connector 20+4 pin ATX
Peripheral (Molex) power connectors (4-pin) 4
Motherboard power cable length 45 cm
Number of SATA power connectors 8
EPS power connector (8-pin) No
EPS power connector (4+4 pin) Yes
PCI Express power connectors (6-pin) 0
PCI Express power connectors (6+2 pin) 3
PCI Express power connectors (8-pin) 0
PCI Express power connectors (12+4 pin) 0
PCI Express power connectors (12-pin) 0
CPU power connector (4+4 pin) Yes
ATX Power connector (24-pin) No
ATX power connector (20+4 pin) No
PCI Express connector Yes
Cabling type Fully-Modular

Power

Total power 750 W
AC input voltage 100 - 240 V
AC input frequency 47 - 63 Hz
Maximum input current (@110V) 8 A
Maximum input current (@220V) 4 A
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 110 W
Combined power (+12V) 744 W
Combined power (+5V) 110 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 12.5 W
Max output current (+3.3V) 20 A
Max output current (+12V) 62 A
Max output current (+5V) 20 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 2.5 A
Efficiency 90%
Power protection features Over current, Over power, Over voltage, Overheating, Short circuit

Weight & dimensions

Width 150 mm
Depth 140 mm
Height 86 mm
