| Categoría |
Motherboards en Componentes de ensamble
|
| Clave |
195553995047 |
| Marca |
ASUS |
| Modelo |
90MB1DD0-M0AAY0 |
| UPC |
195553995047 |
Descripción del fabricante

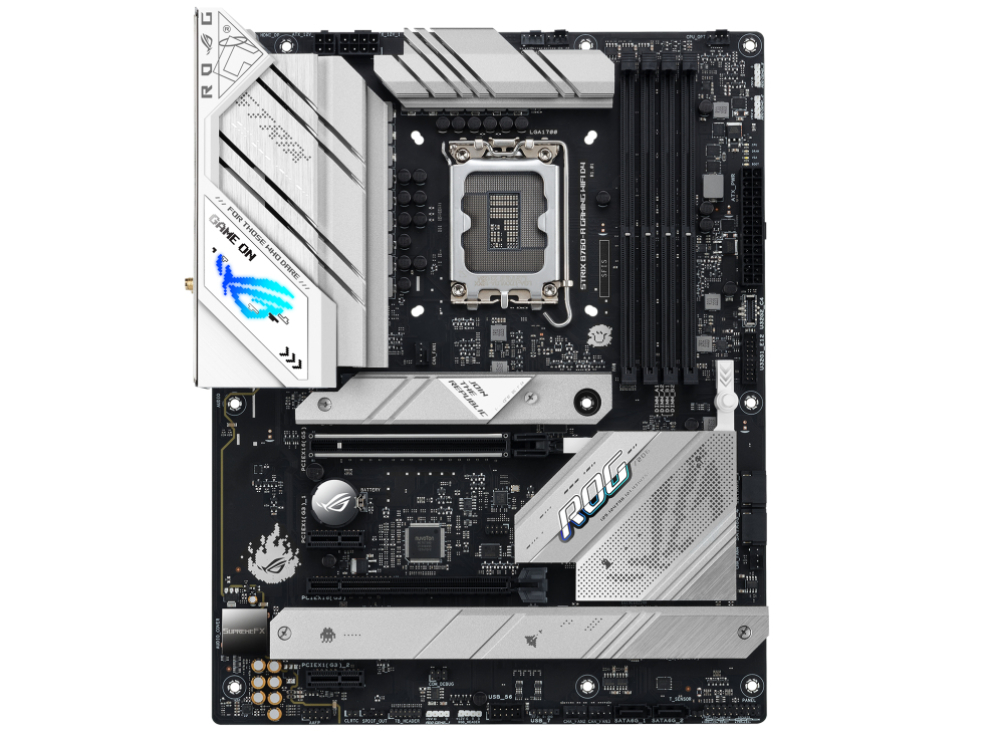

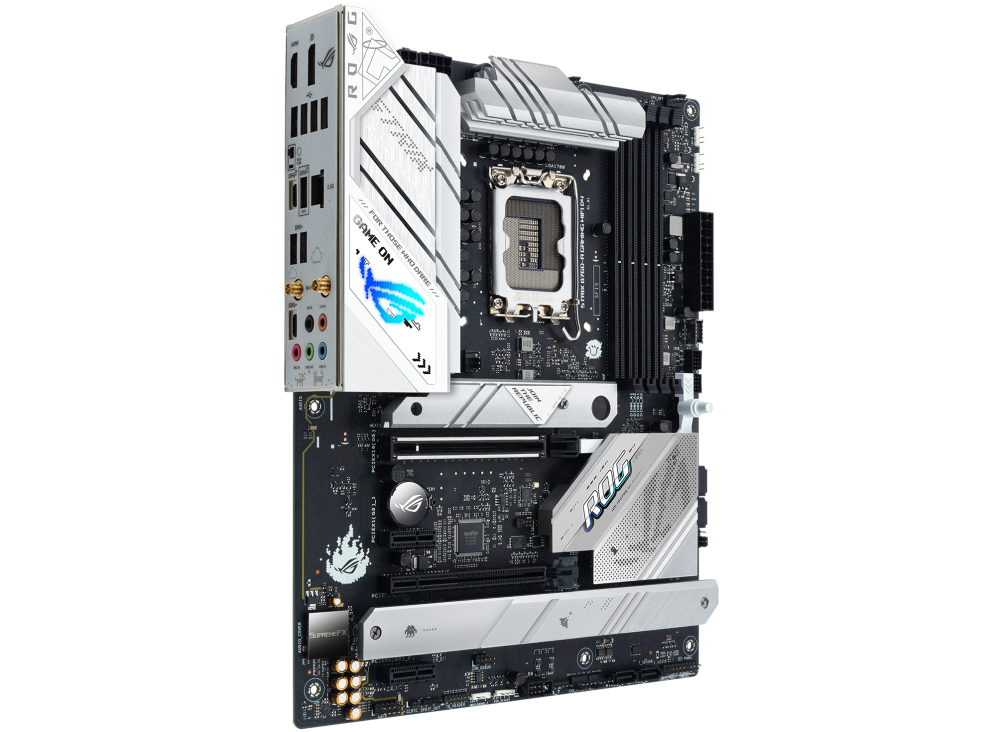

ASUS ROG STRIX B760-A GAMING WIFI D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Manuales y documentos
| BIOS type |
UEFI AMI |
| BIOS memory size |
256 Mbit |
| PCI Express x1 (Gen 3.x) slots |
2 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| PCI Express x16 (Gen 5.x) slots |
1 |
| Number of M.2 (M) slots |
3 |
| Component for |
PC |
| Motherboard form factor |
ATX |
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel B760 |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC4080 |
| Power source type |
ATX |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Parallel processing technology support |
Not supported |
| USB 2.0 connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| Number of SATA III connectors |
4 |
| S/PDIF out connector |
Yes |
| Front panel audio connector |
Yes |
| Front panel connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| Number of chassis fan connectors |
4 |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| EPS power connector (8-pin) |
Yes |
| Thunderbolt headers |
1 |
| 12V power connector |
Yes |
| RGB LED pin header |
Yes |
| Supported memory types |
DDR4-SDRAM |
| Number of memory slots |
4 |
| Maximum internal memory |
128 GB |
| Memory slots type |
DIMM |
| Memory channels |
Dual-channel |
| ECC сompatibility |
Non-ECC |
| Supported memory clock speeds |
2133,2400,2666,2800,2933,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5066,5333 MHz |
| Supported memory clock speed (max) |
5333 MHz |
| Unbuffered memory |
Yes |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| Processor manufacturer |
Intel |
| Processor socket |
LGA 1700 |
| Compatible processor series |
Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Maximum number of SMP processors |
1 |
| Supported processor sockets |
LGA 1700 |
| USB 2.0 ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
| VGA (D-Sub) ports quantity |
0 |
| HDMI ports quantity |
1 |
| DVI-D ports quantity |
0 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
1 |
| DisplayPort version |
1.4 |
| Headphone outputs |
1 |
| Line-in |
Yes |
| Microphone in |
Yes |
| WiFi-AP antenna jack |
2 |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Number of HDDs supported |
4 |
| Number of storage drives supported |
7 |
| RAID support |
Yes |
| RAID levels |
0, 1, 5, 10 |
| Width |
305 mm |
| Depth |
244 mm |
