OK DOCK
MSI

Clave: 824142227213

  • Motherboard AM4 Micro-ATX MSI B550M PRO-VDH, 128GB RAM DDR4 Max, 1 M.2 PCIe 4 + 1 M.2 PCIe 3

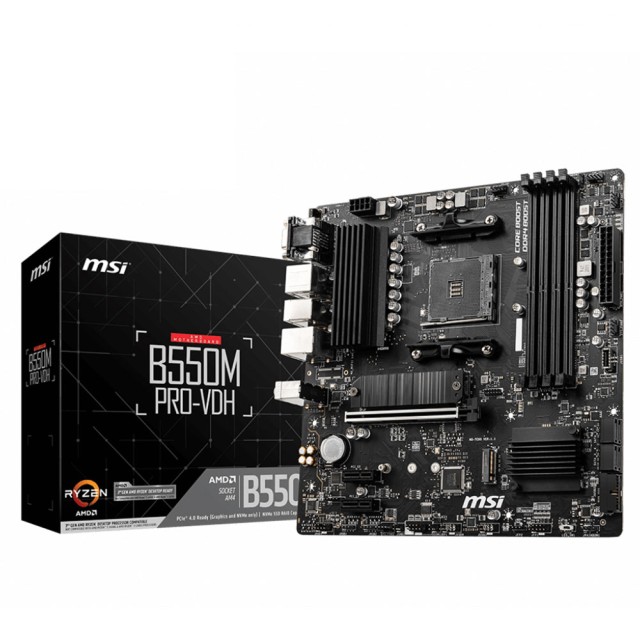

  • Motherboard AM4 Micro-ATX MSI B550M PRO-VDH, 128GB RAM DDR4 Max, 1 M.2 PCIe 4 + 1 M.2 PCIe 3 - imagen 1

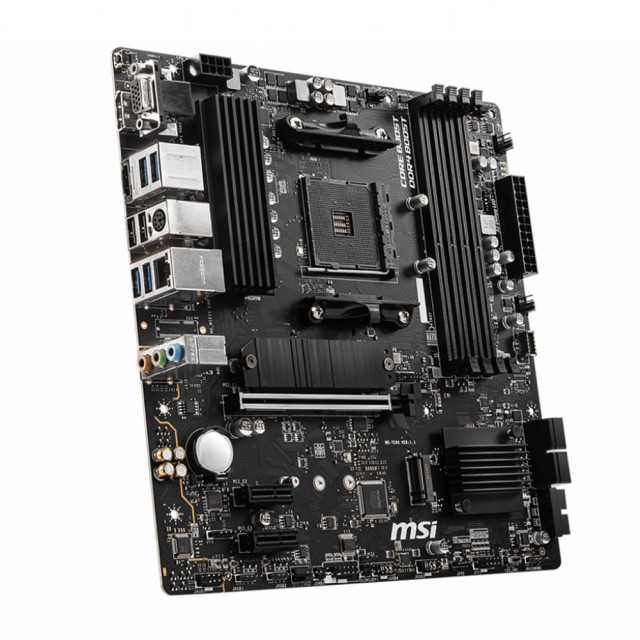

  • Motherboard AM4 Micro-ATX MSI B550M PRO-VDH, 128GB RAM DDR4 Max, 1 M.2 PCIe 4 + 1 M.2 PCIe 3 - imagen 2

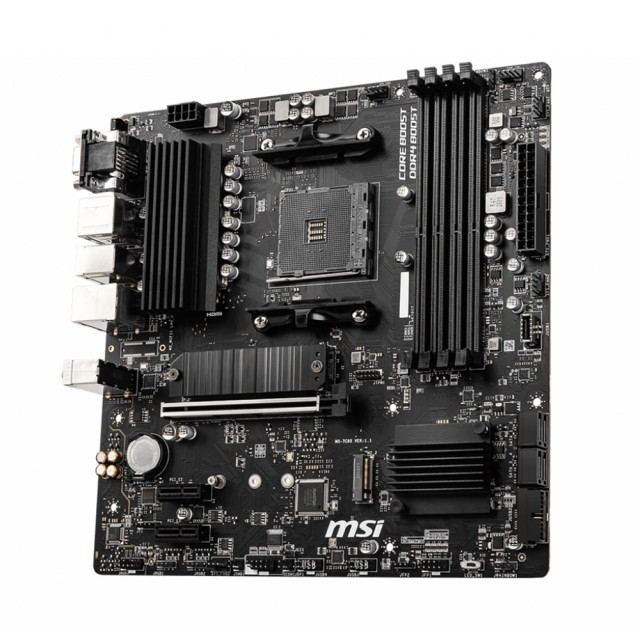

  • Motherboard AM4 Micro-ATX MSI B550M PRO-VDH, 128GB RAM DDR4 Max, 1 M.2 PCIe 4 + 1 M.2 PCIe 3 - imagen 3

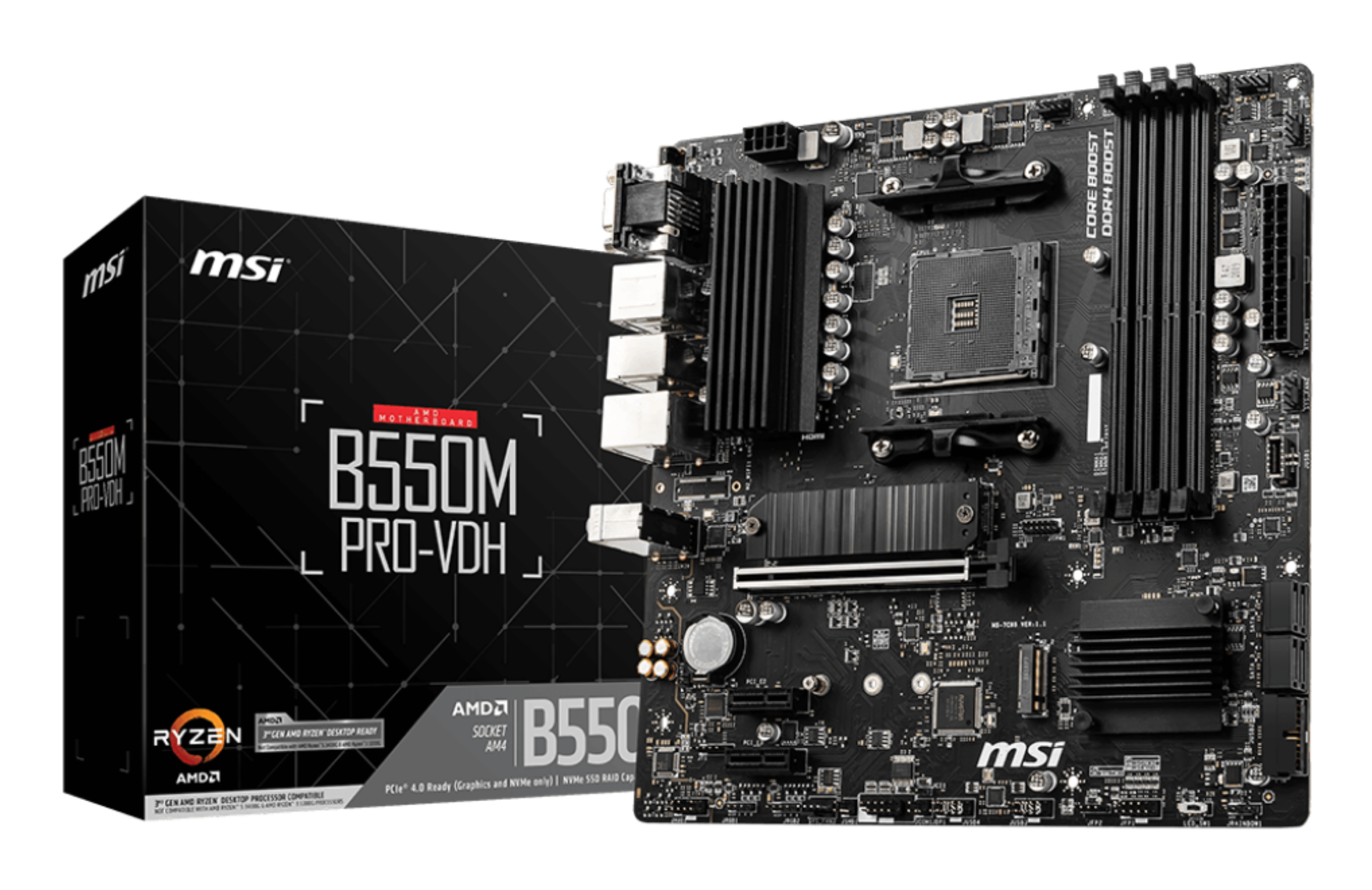

  • Motherboard AM4 Micro-ATX MSI B550M PRO-VDH, 128GB RAM DDR4 Max, 1 M.2 PCIe 4 + 1 M.2 PCIe 3 - imagen 4
  • Motherboard AM4 Micro-ATX MSI B550M PRO-VDH, 128GB RAM DDR4 Max, 1 M.2 PCIe 4 + 1 M.2 PCIe 3 - imagen 5
MSI Oferta Navideña

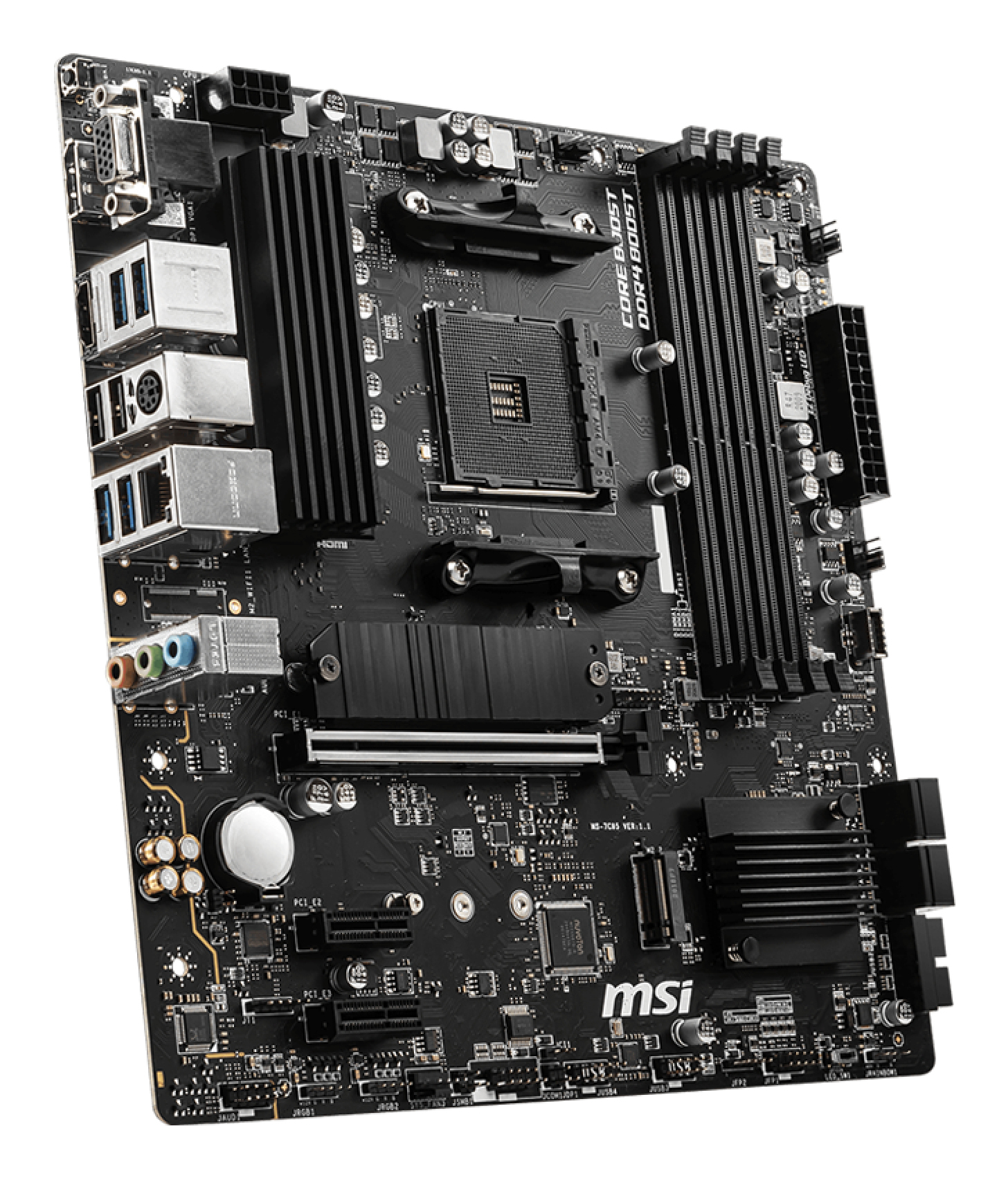

Motherboard AM4 Micro-ATX MSI B550M PRO-VDH, 128GB RAM DDR4 Max, 1 M.2 PCIe 4 + 1 M.2 PCIe 3

$1,799.00

Agotado, por favor envía un mensaje para conocer disponibilidad
Guardar en favoritos
Métodos de pago
MSI B550M PRO-VDH, AMD, Socket AM4, AMD Ryzen 3000 Series, DDR4-SDRAM, 128 GB, DIMM

Puntos destacados

  • AMD Socket AM4 AMD Ryzen 3000 Series
  • PC micro ATX AMD B550 7.1 channels
  • DDR4-SDRAM 4 DIMM Maximum internal memory: 128 GB
  • HDD & SSD SATA III RAID support Number of storage drives supported: 6
  • Clear CMOS jumper
  • Gigabit Ethernet
Categoría Motherboards en Componentes de ensamble
Clave 824142227213
Marca MSI
Modelo B550M PRO-VDH
UPC 824142227213

Descripción del fabricante

MSI B550M PRO-VDH. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek 8111HN

Manuales y documentos

BIOS

Clear CMOS jumper Yes

Expansion slots

PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 4.x) slots 1
Number of M.2 (M) slots 2

Features

Component for PC
Motherboard form factor micro ATX
Motherboard chipset family AMD
Motherboard chipset AMD B550
Audio output channels 7.1 channels

Graphics

Parallel processing technology support Not supported
Maximum resolution 4096 x 2160 pixels

Internal I/O

USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 0
Number of SATA III connectors 4
Number of SATA II connectors 0
Number of Parallel ATA connectors 0
Front panel audio connector Yes
Front panel connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of chassis fan connectors 3
Chassis intrusion connector Yes
TPM connector Yes
Serial port headers 1
12V power connector Yes
RGB LED pin header Yes

Logistics data

Harmonized System (HS) code 84733020

Memory

Supported memory types DDR4-SDRAM
Number of memory slots 4
Maximum internal memory 128 GB
Memory slots type DIMM
Memory channels Dual-channel
ECC сompatibility ECC & Non-ECC
Supported memory clock speeds 1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400 MHz
Unbuffered memory Yes

Network

Wi-Fi No
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
LAN controller Realtek 8111HN
Top Wi-Fi standard Not available

Other features

Weight 1 kg

Packaging content

Cables included SATA
Drivers included Yes

Processor

Processor manufacturer AMD
Processor socket Socket AM4
Compatible processor series AMD Ryzen 3000 Series
Maximum number of SMP processors 1

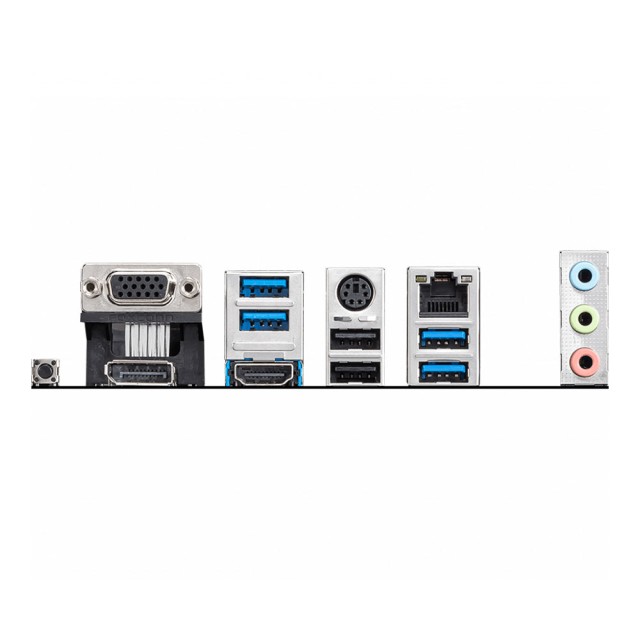

Rear panel I/O ports

USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0
Ethernet LAN (RJ-45) ports 1
VGA (D-Sub) ports quantity 1
HDMI ports quantity 1
DVI-D ports quantity 0
eSATA ports quantity 0
PS/2 ports quantity 0
Firewire (IEEE 1394) ports 0
HDMI version 2.1
DisplayPorts quantity 1

Storage controllers

Supported storage drive interfaces SATA III
Supported storage drive types HDD & SSD
Number of storage drives supported 6
RAID support Yes
RAID levels 0, 1, 10

Weight & dimensions

Width 244 mm
Depth 244 mm
Height 65 mm
