OK DOCK

Clave: 889523035047

  • Motherboard Gigabyte B760M AORUS ELITEAX
  • Motherboard Gigabyte B760M AORUS ELITEAX - imagen 1
  • Motherboard Gigabyte B760M AORUS ELITEAX - imagen 2
  • Motherboard Gigabyte B760M AORUS ELITEAX - imagen 3
  • Motherboard Gigabyte B760M AORUS ELITEAX - imagen 4
  • Motherboard Gigabyte B760M AORUS ELITEAX - imagen 5

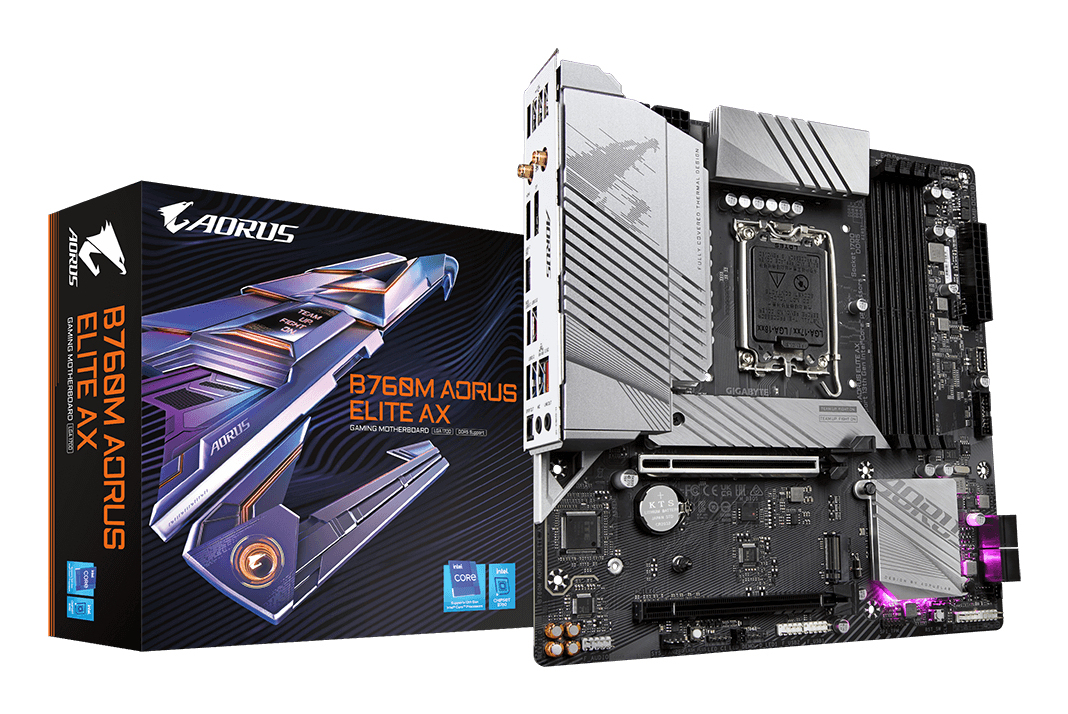

Motherboard Gigabyte B760M AORUS ELITEAX

$3,999.00

Agotado, por favor envía un mensaje para conocer disponibilidad

Te escribimos una sola vez, cuando vuelva a haber existencia. Aviso de privacidad

¡Ups! Este producto se agotó, pero estos parecidos sí los tenemos

TARJETA MADRE GIGABYTE B850M

TARJETA MADRE GIGABYTE B850M

$3,649.00

MotherBoard AM5 ATX Gigabyte B840 GAMING X WIFI6E, 256GB RAM DDR5 Max, 2 M.2 PCIE 4 + 1 M.2 PCIe 3.0, Wi-Fi 6E + BT 5.3

MotherBoard AM5 ATX Gigabyte B840 GAMING X WIFI6E, 256GB RAM DDR5 Max, 2 M.2 PCIE 4 + 1 M.2 PCIe 3.0, Wi-Fi 6E + BT 5.3

$3,499.00

Motherboard AM5 Micro-ATX Gigabyte B850M EAGLE WIFI6E, 256GB RAM DDR5 Max, 1 M.2 PCIe 5 + 1 M.2 PCIe 4, Wi-Fi 6E + BT5.3

Motherboard AM5 Micro-ATX Gigabyte B850M EAGLE WIFI6E, 256GB RAM DDR5 Max, 1 M.2 PCIe 5 + 1 M.2 PCIe 4, Wi-Fi 6E + BT5.3

$3,350.00

Motherboard AM5 Micro-ATX Gigabyte B840M Eagle WIFI6, 128GB RAM DDR5 Max, 1 M.2 PCIe 4.0, Wi-Fi 6 + BT 5.3

Motherboard AM5 Micro-ATX Gigabyte B840M Eagle WIFI6, 128GB RAM DDR5 Max, 1 M.2 PCIe 4.0, Wi-Fi 6 + BT 5.3

$2,399.00

Motherboard LGA1700 Micro-ATX Gigabyte B760M D3HP, 256GB RAM DDR5 Max, 2 M.2 PCIe 4

Motherboard LGA1700 Micro-ATX Gigabyte B760M D3HP, 256GB RAM DDR5 Max, 2 M.2 PCIe 4

$2,199.00

Motherboard LGA1700 Micro-ATX Gigabyte H610M K V2, 128GB RAM DDR5 Max, 1 M.2 PCIe 4

Motherboard LGA1700 Micro-ATX Gigabyte H610M K V2, 128GB RAM DDR5 Max, 1 M.2 PCIe 4

$1,450.00

Guardar en favoritos
Métodos de pago
GIGABYTE B760M AORUS ELITE AX Motherboard - Supports Intel Core 14th Gen CPUs, 12*+1+1 Phases Digital VRM, up to 7800MHz DDR5 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR5-SDRAM, 256 GB

Puntos destacados

  • Intel LGA 1700 Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
  • PC micro ATX Intel B760 Express 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
  • CrossFireX
  • BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper
  • 2.5 Gigabit Ethernet, 5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3
Categoría Motherboards en Componentes de ensamble
Clave 889523035047
Marca Gigabyte
Modelo B760M AORUS ELITE AX
UPC 889523035047

Descripción del fabricante

GIGABYTE B760M AORUS ELITE AX Motherboard - Supports Intel Core 14th Gen CPUs, 12*+1+1 Phases Digital VRM, up to 7800MHz DDR5 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Parallel processing technology support: CrossFireX, Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E...

Manuales y documentos

Battery

Battery weight 3 g
Lithium weight per battery 0.07 g
Number of battery cells 1
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032

BIOS

BIOS type UEFI AMI
BIOS memory size 256 Mbit
ACPI version 5.0
Clear CMOS jumper Yes
Desktop Management Interface (DMI) version 2.7
System Management BIOS (SMBIOS) version 2.7

Expansion slots

PCI Express x16 (Gen 4.x) slots 1
Number of M.2 (M) slots 2
1st M.2 largest key size 2280
1st M.2 highest PCI Express generation 4.0
2nd M.2 largest key size 22110
2nd M.2 highest PCI Express generation 4.0

Features

Component for PC
Motherboard form factor micro ATX
Motherboard chipset family Intel
Motherboard chipset Intel B760 Express
Audio output channels 7.1 channels
Product colour Black
PC health monitoring Fan, Temperature, Voltage, Water cooling
Power source type ATX
Windows operating systems supported Windows 10, Windows 11

Graphics

Parallel processing technology support CrossFireX
Maximum resolution 4096 x 2304 pixels
HDCP Yes
DirectX version 12.0

Internal I/O

USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of SATA III connectors 4
Total number of SATA connectors 4
S/PDIF out connector Yes
Front panel audio connector Yes
Front panel connector Yes
ATX Power connector (24-pin) Yes
CPU fan connector Yes
Number of chassis fan connectors 3
Peripheral (Molex) power connectors (4-pin) 1
EPS power connector (8-pin) Yes
TPM connector Yes
Thunderbolt headers 2
RGB LED pin header Yes

Logistics data

Country of origin China
Products per shipping (inner) case 1 pc(s)

Memory

Supported memory types DDR5-SDRAM
Number of memory slots 4
Maximum internal memory 256 GB
Memory slots type DIMM
ECC сompatibility Non-ECC
Supported memory clock speeds 4000,4800,5300,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800 MHz
Supported memory clock speed (max) 7800 MHz
Supported memory module capacities 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Unbuffered memory Yes

Network

Wi-Fi Yes
Ethernet LAN Yes
Ethernet interface type 2.5 Gigabit Ethernet, 5 Gigabit Ethernet
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller model Intel Wi-Fi 6E AX211
Bluetooth Yes
Bluetooth version 5.3

Packaging content

Cables included SATA
Batteries included Yes
Bundled software Norton Internet Security

Packaging data

Package width 270 mm
Package depth 268 mm
Package height 68 mm
Package weight 1.77 kg

Processor

Processor manufacturer Intel
Processor socket LGA 1700
Compatible processor series Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor sockets LGA 1700

Rear panel I/O ports

USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0
Ethernet LAN (RJ-45) ports 1
VGA (D-Sub) ports quantity 0
HDMI ports quantity 1
DVI-D ports quantity 0
USB 3.2 Gen 2x2 Type-C ports quantity 1
DisplayPorts quantity 1
Headphone outputs 1
Microphone in Yes
WiFi-AP antenna jack 2

Storage controllers

Supported storage drive interfaces M.2, SATA III
Supported storage drive types HDD & SSD
Number of HDDs supported 4
Number of storage drives supported 6
RAID support Yes
RAID levels 0, 1, 5, 10

Technical details

Warranty period 3 year(s)

Weight & dimensions

Width 244 mm
Depth 244 mm
Height 35 mm
