Descripción del fabricante

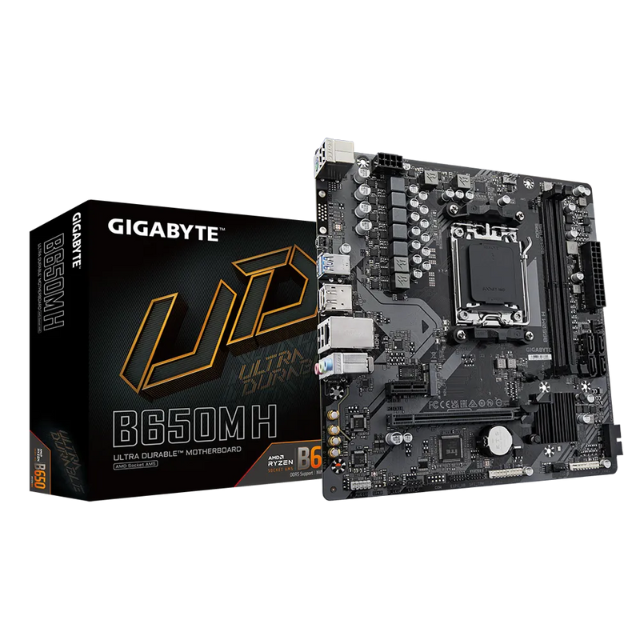

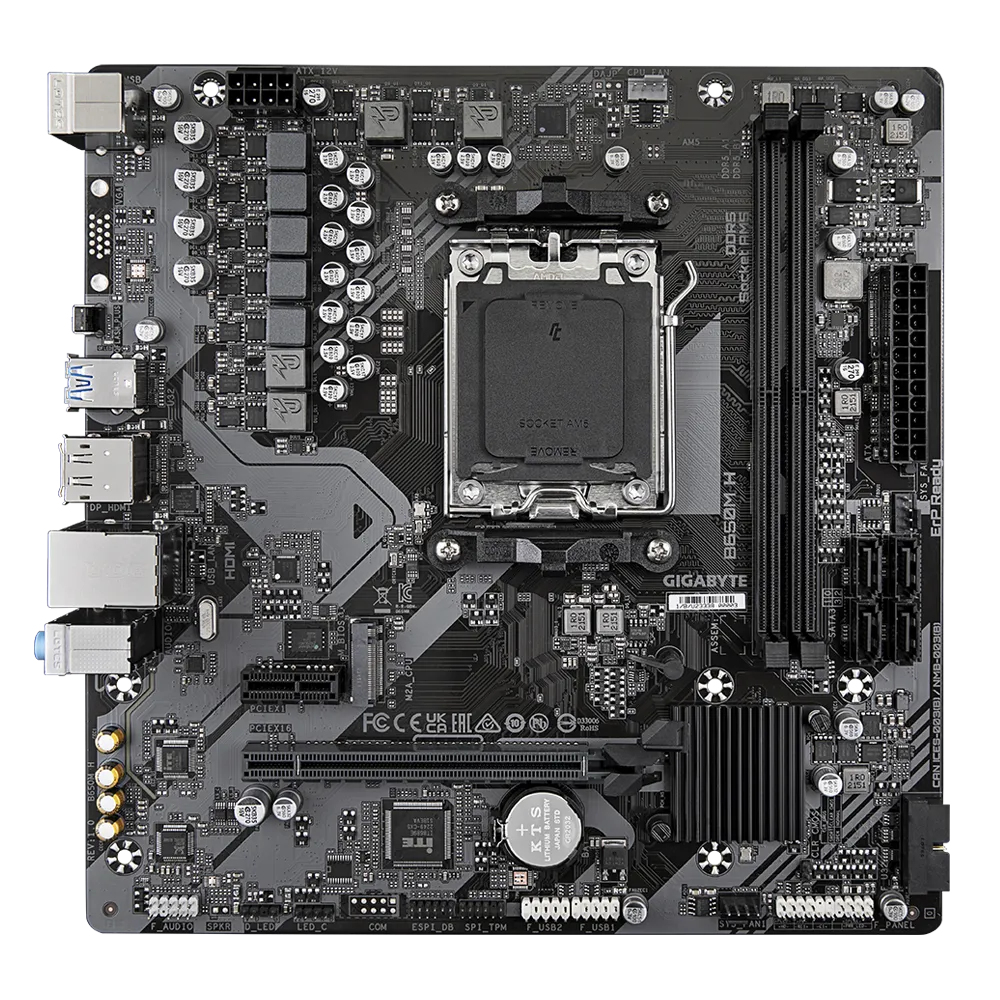

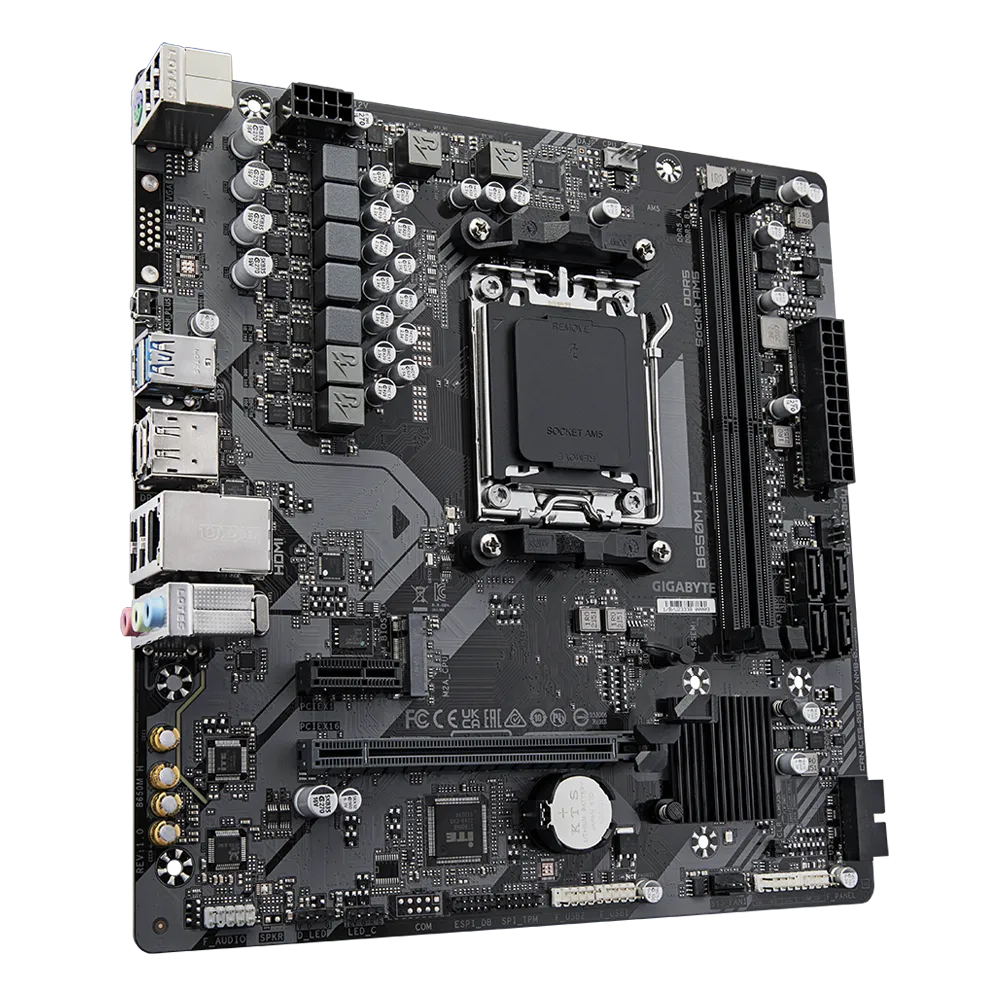

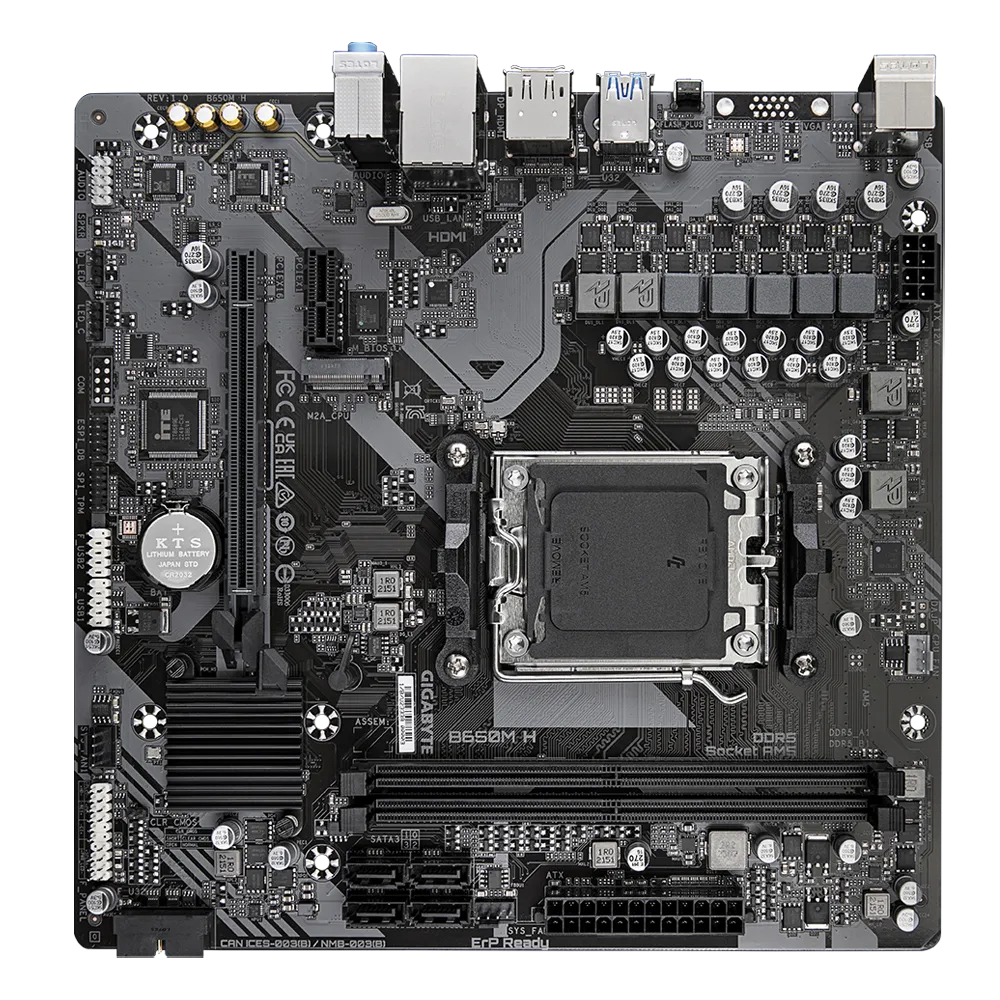

GIGABYTE B650M H. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA, Supported storage drive types: SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
Manuales y documentos
| BIOS type |
UEFI AMI |
| BIOS memory size |
256 Mbit |
| ACPI version |
5.0 |
| Clear CMOS jumper |
Yes |
| Desktop Management Interface (DMI) version |
2.7 |
| System Management BIOS (SMBIOS) version |
2.7 |
| PCI Express x1 slots |
1 |
| PCI Express x16 slots |
1 |
| Component for |
PC |
| Motherboard form factor |
micro ATX |
| Motherboard chipset family |
AMD |
| Motherboard chipset |
AMD B650 |
| Audio output channels |
7.1 channels |
| Product colour |
Black, Grey, Metallic |
| PC health monitoring |
Fan, Temperature, Voltage, Water cooling |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Maximum resolution |
4096 x 2160 pixels |
| HDCP |
Yes |
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
4 |
| Total number of SATA connectors |
4 |
| Audio connector |
Yes |
| Front panel audio connector |
Yes |
| Front panel connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| TPM connector |
Yes |
| RGB LED pin header |
Yes |
| Supported memory types |
DDR5-SDRAM |
| Number of memory slots |
2 |
| Maximum internal memory |
96 GB |
| Memory slots type |
DIMM |
| Memory channels |
Dual-channel |
| ECC сompatibility |
Non-ECC |
| Supported memory clock speeds |
4400,4800,5200,5600,6000,6200,6400 MHz |
| Supported memory clock speed (max) |
6400 MHz |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Processor manufacturer |
AMD |
| Processor socket |
Socket AM5 |
| Supported processor sockets |
Socket AM5 |
| USB 2.0 ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
| VGA (D-Sub) ports quantity |
0 |
| HDMI ports quantity |
1 |
| DVI-D ports quantity |
0 |
| PS/2 ports quantity |
1 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
1 |
| DisplayPort version |
1.4 |
| Headphone outputs |
3 |
| Supported storage drive interfaces |
M.2, PCI Express 3.0, SATA |
| Supported storage drive types |
SSD |
| Number of storage drives supported |
5 |
| RAID support |
Yes |
| RAID levels |
0, 1, 10 |
