| Categoría |
Motherboards en Componentes de ensamble
|
| Clave |
195553565493 |
| Marca |
ASUS |
| Modelo |
90MB1A10-M0UAY0 |
| UPC |
195553565493 |
Descripción del fabricante

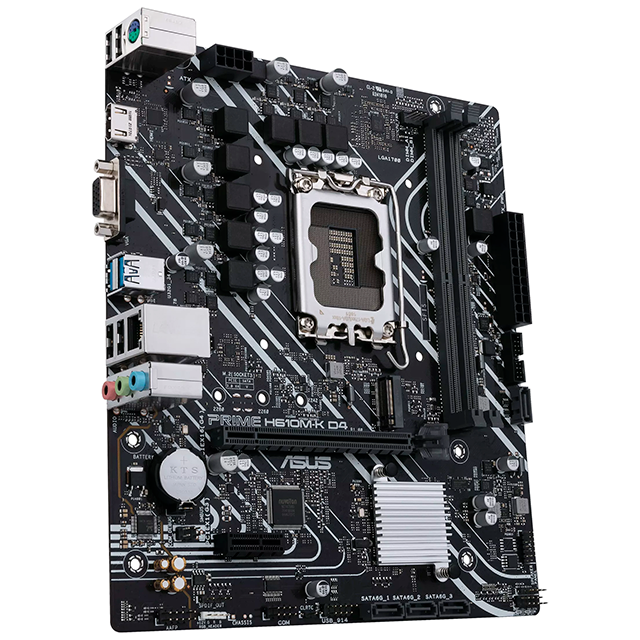

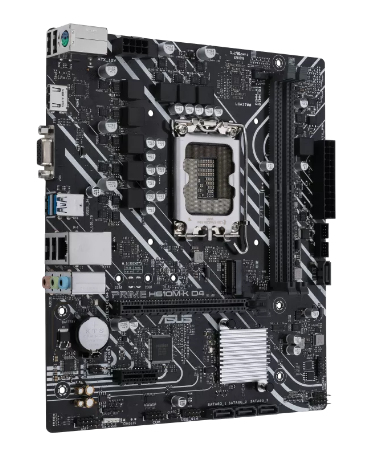

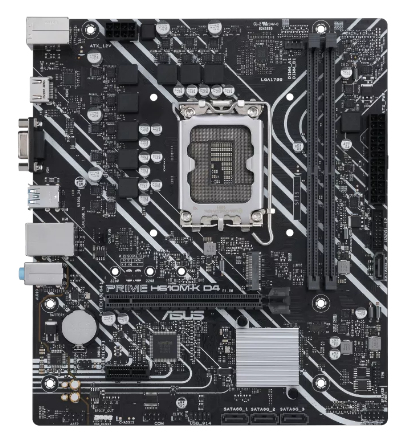

ASUS PRIME H610M-K D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Manuales y documentos
| BIOS type |
UEFI AMI |
| BIOS memory size |
128 Mbit |
| PCI Express x1 (Gen 3.x) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| Number of M.2 (M) slots |
1 |
| Component for |
PC |
| Motherboard form factor |
micro ATX |
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel H610 |
| Audio output channels |
7.1 channels |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Number of displays supported |
2 |
| USB 2.0 connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| Number of SATA III connectors |
4 |
| S/PDIF out connector |
Yes |
| Front panel audio connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| Number of chassis fan connectors |
1 |
| EPS power connector (8-pin) |
Yes |
| Number of COM connectors |
1 |
| TPM connector |
Yes |
| 12V power connector |
Yes |
| RGB LED pin header |
Yes |
| Harmonized System (HS) code |
84733020 |
| Supported memory types |
DDR4-SDRAM |
| Number of memory slots |
2 |
| Maximum internal memory |
64 GB |
| Memory slots type |
DIMM |
| Memory channels |
Dual-channel |
| ECC сompatibility |
Non-ECC |
| Supported memory clock speeds |
2133,2400,2666,2800,2933,3000,3200 MHz |
| Unbuffered memory |
Yes |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Ethernet interface type |
Gigabit Ethernet |
| Cables included |
SATA |
| Drivers included |
Yes |
| Processor manufacturer |
Intel |
| Processor socket |
LGA 1700 |
| Compatible processor series |
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Maximum number of SMP processors |
1 |
| USB 2.0 ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
| VGA (D-Sub) ports quantity |
1 |
| HDMI ports quantity |
1 |
| DVI-D ports quantity |
0 |
| PS/2 ports quantity |
1 |
| HDMI version |
2.1 |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| Supported storage drive interfaces |
M.2, SATA |
| Supported storage drive types |
HDD & SSD |
| Number of storage drives supported |
5 |
| Width |
234 mm |
| Depth |
203 mm |
| Height |
51 mm |
