| Categoría |
Motherboards en Componentes de ensamble
|
| Clave |
889523039984 |
| Marca |
Gigabyte |
| Modelo |
B650 AORUS ELITE AX V2 |
| UPC |
889523039984 |
Descripción del fabricante

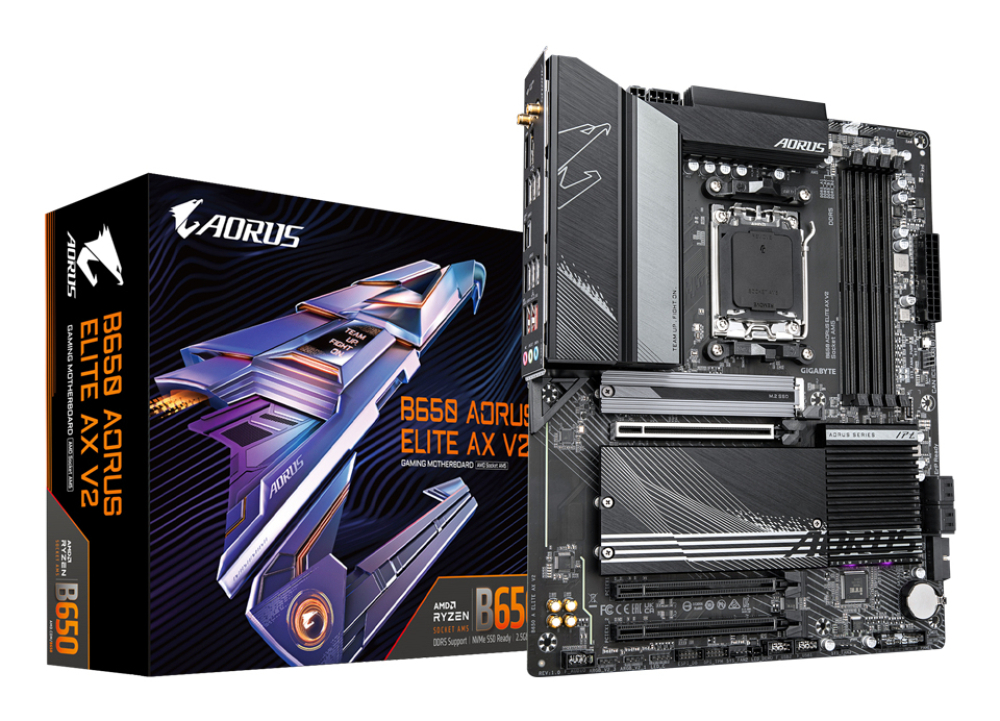

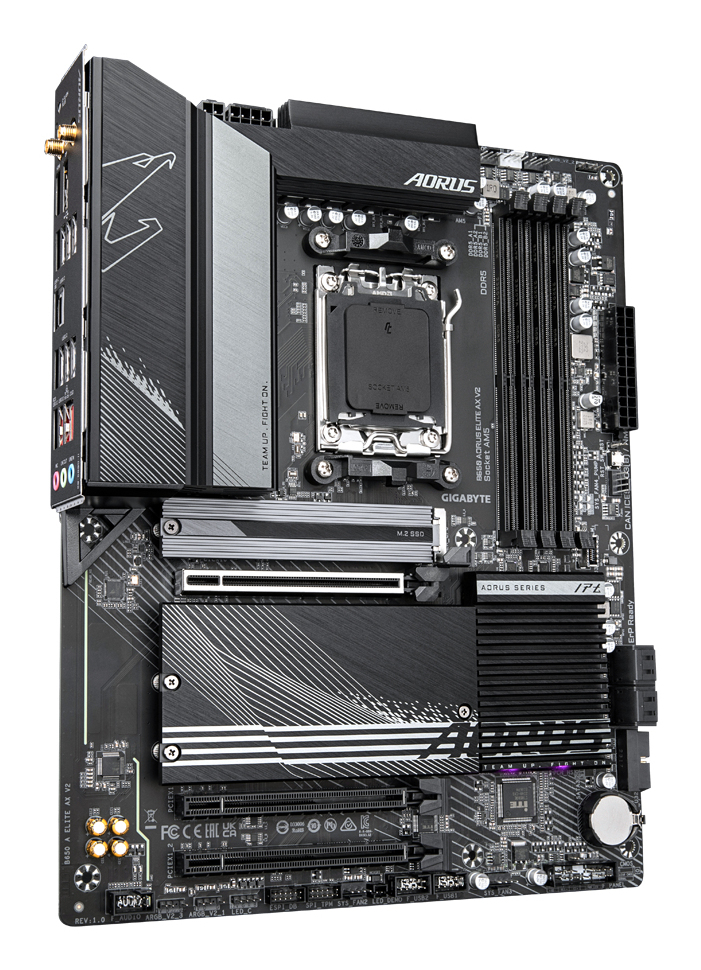

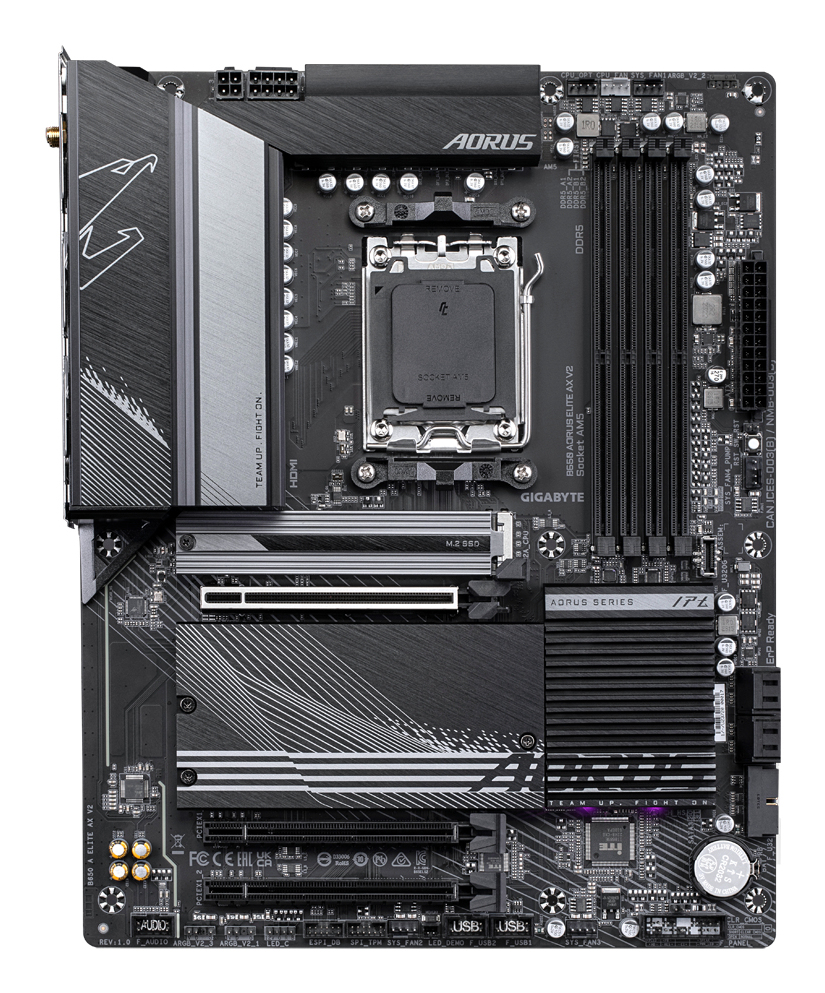

GIGABYTE B650 AORUS ELITE AX V2 Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Manuales y documentos
| Battery weight |
3 g |
| Lithium weight per battery |
0.07 g |
| Number of battery cells |
1 |
| Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
| Battery type |
CR2032 |
| BIOS type |
UEFI AMI |
| BIOS memory size |
256 Mbit |
| ACPI version |
5.0 |
| Clear CMOS jumper |
Yes |
| Desktop Management Interface (DMI) version |
2.7 |
| System Management BIOS (SMBIOS) version |
2.7 |
| PCI Express x16 (Gen 3.x) slots |
2 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| Number of M.2 (M) slots |
3 |
| 1st M.2 largest key size |
25110 |
| 1st M.2 highest PCI Express generation |
5.0 |
| 2nd M.2 largest key size |
25110 |
| 2nd M.2 highest PCI Express generation |
4.0 |
| 3rd M.2 largest key size |
25110 |
| 3rd M.2 highest PCI Express generation |
4.0 |
| Component for |
PC |
| Motherboard form factor |
ATX |
| Motherboard chipset family |
AMD |
| Motherboard chipset |
AMD B650 |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC897 |
| Product colour |
Black |
| PC health monitoring |
Fan, Temperature, Voltage, Water cooling |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Parallel processing technology support |
Not supported |
| Maximum resolution |
4096 x 2160 pixels |
| HDCP |
Yes |
| DirectX version |
12.0 |
| Discrete graphics support |
Yes |
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2x2 connectors |
1 |
| Front panel audio connector |
Yes |
| Front panel connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| Number of CPU fan connectors |
2 |
| Number of chassis fan connectors |
4 |
| EPS power connector (8-pin) |
Yes |
| TPM connector |
Yes |
| 12V power connector |
Yes |
| Number of water pump connectors |
2 |
| RGB LED pin header |
Yes |
| Number of RGB LED pin headers |
4 |
| Country of origin |
China |
| Products per shipping (inner) case |
1 pc(s) |
| Supported memory types |
DDR5-SDRAM |
| Number of memory slots |
4 |
| Maximum internal memory |
256 GB |
| Memory slots type |
DIMM |
| Memory channels |
Dual-channel |
| ECC сompatibility |
Non-ECC |
| Supported memory clock speeds |
8000,7800,7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz |
| Supported memory clock speed (max) |
8000 MHz |
| Unbuffered memory |
Yes |
| Maximum internal memory per slot |
64 GB |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| LAN controller |
Realtek RTL8125 |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN controller model |
Realtek RTL8852CE |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| Batteries included |
Yes |
| Antenna included |
Yes |
| Screws included |
Yes |
| Bundled software |
Norton® Internet Security (OEM version)
LAN bandwidth management software |
| Package width |
335 mm |
| Package depth |
270 mm |
| Package height |
80 mm |
| Package weight |
2.29 kg |
| Processor manufacturer |
AMD |
| Processor socket |
Socket AM5 |
| Compatible processor series |
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets |
Socket AM5 |

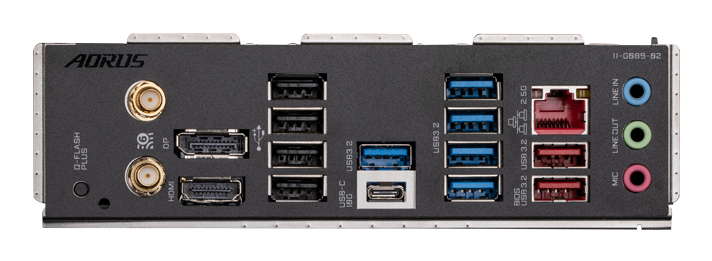

| USB 2.0 ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| VGA (D-Sub) ports quantity |
0 |
| HDMI ports quantity |
1 |
| DVI-D ports quantity |
0 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
1 |
| DisplayPort version |
1.4 |
| Headphone outputs |
1 |
| Line-in |
Yes |
| Microphone in |
Yes |
| WiFi-AP antenna jack |
2 |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Number of HDDs supported |
4 |
| Number of storage drives supported |
7 |
| RAID support |
Yes |
| RAID levels |
0, 1, 10 |
| Warranty period |
3 year(s) |
| Width |
305 mm |
| Depth |
244 mm |
| Height |
35 mm |
