| Categoría |
Cámaras en Videovigilancia y Seguridad
|
| Clave |
6923172541352 |
| Marca |
Dahua Technology |
| Modelo |
DH-IPC-HDW3441EM-S-S2 |
| EAN |
6923172541352 |
Descripción del fabricante

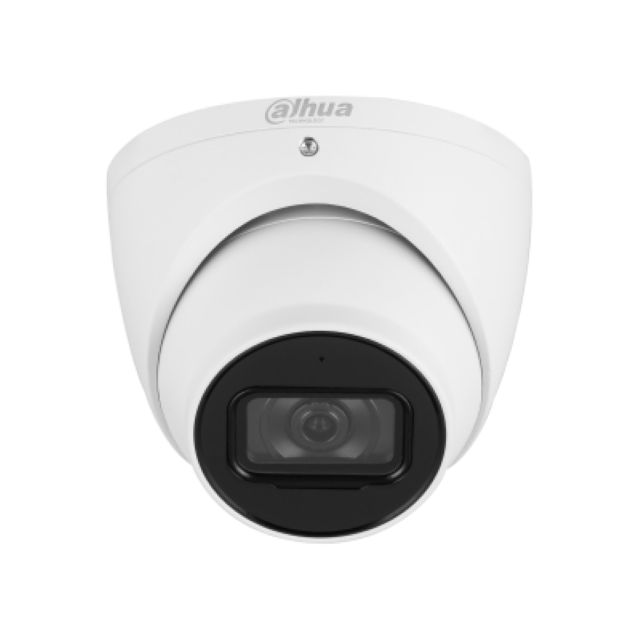

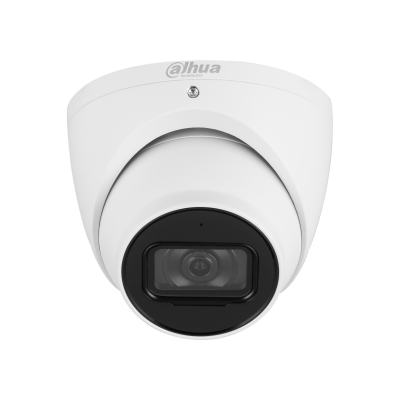

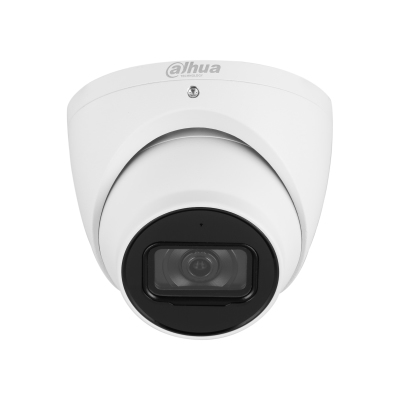

Dahua Technology WizSense DH-IPC-HDW3441EM-S-S2. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Turret. Angle of rotation: 360°, Lens viewing angle, horizontal: 52°, Lens viewing angle, vertical: 28°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 124 m, Observe distance: 49.6 m, Recognize distance: 24.8 m
Manuales y documentos
| Built-in speaker(s) |
No |
| Audio system |
1-way |
| Audio system full duplex |
Yes |
| Audio input channels |
1.0 channels |
| Audio output channels |
1.0 channels |
| Audio codecs |
G.711a; G.711Mu; PCM; G.726; G.723 |
| Angle of rotation |
360° |
| Lens viewing angle, horizontal |
52° |
| Lens viewing angle, vertical |
28° |
| Lens viewing angle, diagonal |
61° |
| Tilt angle range |
0 - 78° |
| Pan range |
0 - 360° |
| White balance |
Auto, Custom modes, Manual, Natural, Outdoor, Street lamp |
| Camera shutter type |
Electronic |
| Camera shutter speed |
1/3 - 1/100000 s |
| Adjustment shutter speed |
Auto/Manual |
| Number of Privacy masking areas |
4 |
| Mounting type |
Ceiling |
| Product colour |
Black, White |
| Form factor |
Turret |
| Housing material |
Metal |
| International Protection (IP) code |
IP67 |
| Display diagonal |
2.54 cm (1") |
| Sensor type |
CMOS |
| Number of sensors |
1 |
| Optical sensor size |
25.4 / 3 mm (1 / 3") |
| Progressive scan |
Yes |
| Number of lenses |
1 |
| Detect distance |
124 m |
| Observe distance |
49.6 m |
| Recognize distance |
24.8 m |
| Maximum aperture number |
1.4 |
| Identify distance |
12.4 m |
| Fixed focal length |
6 mm |
| Detect distance (wide) |
124 m |
| Observe distance (wide) |
49.6 m |
| Recognize distance (wide) |
24.8 m |
| Identify distance (wide) |
12.4 m |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Bluetooth |
No |
| Ethernet interface type |
Fast Ethernet |
| Night vision |
Yes |
| Night vision distance |
50 m |
| LED type |
IR |
| Number of illumination LEDs |
2 |
| Operating temperature (T-T) |
-40 - 60 °C |
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Digital Wide Dynamic Range (DWDR) (panoramic camera) |
Yes |
| Type |
IP security camera |
| Placement supported |
Indoor & outdoor |
| Connectivity technology |
Wired |
| Wide Dynamic Range (WDR) |
Yes |
| Day/night mode |
Yes |
| Remote viewing |
Yes |
| Plug and Play |
Yes |
| Certification |
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14; |
| Ethernet LAN (RJ-45) ports |
1 |
| Power source type |
DC, PoE |
| Power consumption (typical) |
3.3 W |
| DC output voltage |
12 |
| Password protection |
Yes |
| Intelligent Video Surveillance (IVS) system features |
Intrusion, Tripwire |
| Mirror |
Yes |
| Automatic Network Replenishment (ANR) |
Yes |
| Built-in HDD |
No |
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash) |
| Maximum memory card size |
256 GB |
| Internal memory |
512 MB |
| ROM capacity |
128 MB |
| Mobile operating systems supported |
Android, iOS |
| Maximum resolution |
2688 x 1520 pixels |
| Total megapixels |
4 MP |
| Video formats supported |
H.264, H.264B, H.265, M-JPEG |
| Video compression formats |
H.264+, H.264H, H.265+ |
| Supported graphics resolutions |
352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2560 x 1440, 2688 x 1520 |
| Video recording |
Yes |
| Frame rate |
30 fps |
| Video intelligence analytic |
Yes |
| Video streaming |
Yes |
| Noise reduction |
Yes |
| Noise reduction technology |
3D noise reduction |
| Gain control type |
Auto/Manual |
| Portrait mode |
Yes |
| Privacy masking |
Yes |
| Bit rate control |
Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Back Light Compensation (BLC) |
Yes |
| Highlight Compensation (HLC) |
Yes |
| Digital Wide Dynamic Range (DWDR) |
Yes |
| Region of Interest (ROI) encoding |
Yes |
| Smart IR |
Yes |
| Height |
93.6 mm |
| Diameter |
10.6 cm |
| Weight |
500 g |
