Descripción del fabricante

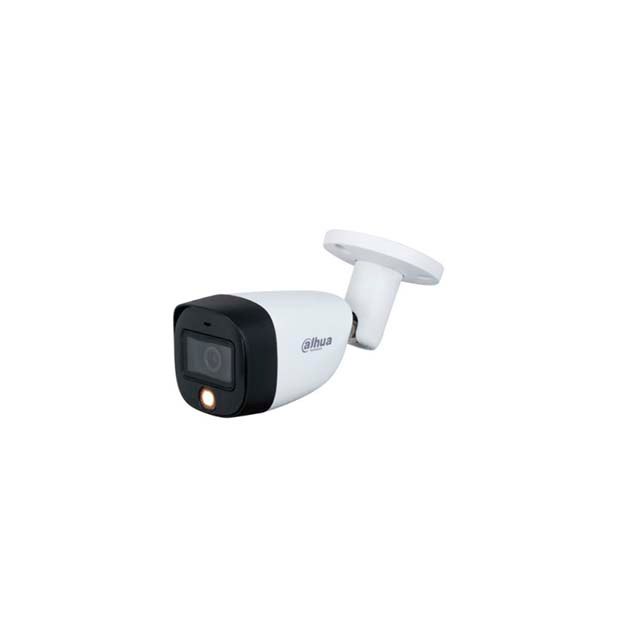

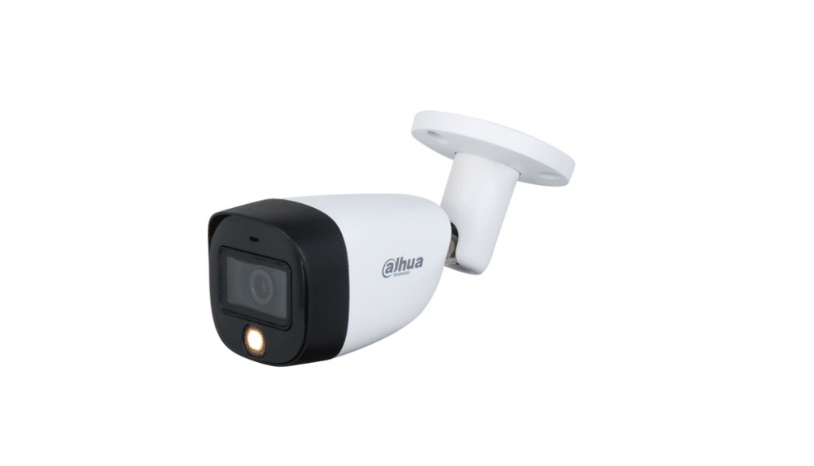

Dahua Technology Lite DH-HAC-HFW1209CMN-A-LED. Type: CCTV security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Angle of rotation: 360°, Lens viewing angle, horizontal: 108°, Lens viewing angle, vertical: 58°. Sensor type: CMOS. Fixed focal length: 2.8 mm, Detect distance (wide): 42.2 m, Observe distance (wide): 16.9 m
Manuales y documentos
| Camera pan control |
No |
| Camera tilt control |
No |
| Minimum illumination |
0 lx |
| Angle of rotation |
360° |
| Lens viewing angle, horizontal |
108° |
| Lens viewing angle, vertical |
58° |
| Lens viewing angle, diagonal |
127° |
| Tilt angle range |
0 - 90° |
| Pan range |
0 - 360° |
| White balance |
Auto, Manual |
| Camera shutter type |
Electronic |
| Camera shutter speed |
1/30 - 1/100000 s |
| Mounting type |
Ceiling/wall |
| Product colour |
White |
| Form factor |
Bullet |
| Housing material |
Plastic |
| International Protection (IP) code |
IP67 |
| Sensor type |
CMOS |
| Number of sensors |
1 |
| Progressive scan |
Yes |
| Number of lenses |
1 |
| Maximum aperture number |
1.6 |
| Fixed focal length |
2.8 mm |
| Detect distance (wide) |
42.2 m |
| Observe distance (wide) |
16.9 m |
| Recognize distance (wide) |
8.4 m |
| Identify distance (wide) |
4.2 m |
| Closest focusing distance |
0.7 m |
| Ethernet LAN |
No |
| Wi-Fi |
No |
| Bluetooth |
No |
| Night vision |
Yes |
| Night vision distance |
20 m |
| Number of illumination LEDs |
1 |
| Operating temperature (T-T) |
-40 - 60 °C |
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Package width |
182 mm |
| Package depth |
90 mm |
| Package height |
77 mm |
| Package weight |
420 g |
| Type |
CCTV security camera |
| Placement supported |
Outdoor |
| Connectivity technology |
Wired |
| Wide Dynamic Range (WDR) |
Yes |
| Day/night mode |
Yes |
| Certification |
CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035
FCC: 47 CFR FCC Part 15, Subpart B |
| Power source type |
DC |
| Power consumption (max) |
3.3 W |
| DC output voltage |
12 |
| Maximum resolution |
1920 x 1080 pixels |
| Total megapixels |
2 MP |
| Supported graphics resolutions |
960 x 480, 960 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Frame rate |
30 fps |
| Analog signal format system |
NTSC |
| Noise reduction |
Yes |
| Noise reduction technology |
2D noise reduction |
| Gain control type |
Auto/Manual |
| Privacy masking |
Yes |
| Back Light Compensation (BLC) |
Yes |
| Highlight Compensation (HLC) |
Yes |
| Digital Wide Dynamic Range (DWDR) |
Yes |
| Width |
166.6 mm |
| Depth |
69.7 mm |
| Height |
70 mm |
| Weight |
320 g |
